Aperçu /Produits/Générateur de soudeur mobile/Best Price China Guangzhou 300Amp 500Amp Diesel Motorized Welding Machine Welder Generator For Sale GNRK

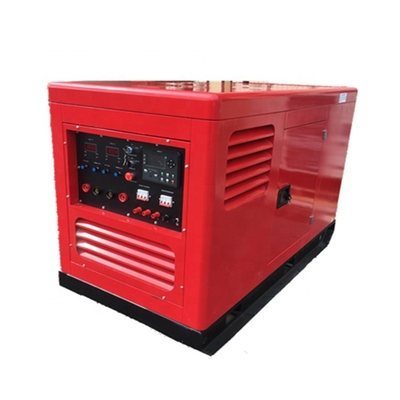

Best Price China Guangzhou 300Amp 500Amp Diesel Motorized Welding Machine Welder Generator For Sale GNRK

1 Set
MOQ
Best Price China Guangzhou 300Amp 500Amp Diesel Motorized Welding Machine Welder Generator For Sale GNRK
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: GNRK
Rated Voltage: 220v/380v,230v/400v,240v/415v
Rated Current: 300A to 500A
Speed: 1500rpm / 1800rpm
Frequency: 50Hz / 60Hz
Product Name: diesel welding machine generator
Alternator: China Stamford
Control panel: Smartgen
Cooling System: Water cooled
Power factor: 0.8
Starting system: Electric auto start
Protection class: IP23
QC system: CCIB inspection and 4 hours factory testing
Certificates: ISO9001:2008, CE.
Informations de base
Certification: ISO9001:2008, CE.
Model Number: GNRK
Conditions de paiement et expédition
Packaging Details: Packed in standard seaworthy packing such as Wooden case / Plywood case etc.
Supply Ability: 200 Set/Sets per Month
Description de produit

Best Price China Guangzhou 300Amp 500Amp engine driven welding machine Diesel welder generator for sale

1.We Can offer both single position welding machine with MMA/TIG/FCAW function and dual positions welding machine whith MMA plus FCAW function, convenient for customer's choice

2.FCAW meets "filling & covering"welding process,fast,effective,and timesaving,can match Lincoln/Miller wire feeder.

Strong auxiliary power:16KW output for three-phase, 6KW output for single-phase

3.Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

4.Owns current/voltage parameter preset function,the matched wire feeder can show the preset/real current, also adjust welding current,easy to operate.

Welding Processes MMA TIG FCAW
Open Circuit Voltage (V) 75 75 75
Current Range (A) 30-500 30-500 30-500
Welding Current (A) 387 430 500 387 430 500 387 430 500
Welding Voltage (V) 35.5 37.2 40 25.5 27.2 30 33.3 35.5 39
Duty Cycle 100% 80% 60% 100% 80% 60% 100% 80% 60%
External Characteristic Curve Drop Characteristic Drop Characteristic Flat Characteristic
Generator output
Power 16Kw
Excitation Type AVR Brushless Excitation
Frequency 50Hz
Phase Three Phase Single Phase
Output Voltage/Power AC 400V/20Kw AC 230V/6Kw
Engine
Type 4 stroke , direct injection , 4 cylinders
Fuel Diesel
Rated Power 26Kw
Rated Speed 1500 RPM
Low Temperature Pre-heated Start
Warning Type Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity 60L
Cooling Method Water-cooled
Fuel Consumption 5.6L/hr
Complete appliance
Weight 690kg
Dimension(mm) 1480×850×1095
Protection Class IP23
